Automatic FPC Soldering Machine Fast Speed Use For LCD Repair

Name: Automatic FPC Soldering Machine Fast Speed Use For LCD Repair
Brand: Chuangwei fpc soldering machine
Price: 1 USD

Cheap Automatic FPC Soldering Machine Fast Speed Use For LCD Repair for sale

Brand Name : Chuangwei fpc soldering machine

Model Number : CWPP-1A

Certification : CE certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 1000 sets per year

Delivery Time : 5 work days

Packaging Details : plywood case

pack size : 950*700*800mm

pack weight : 164 kg

lead time : 5-7 days

warranty : free for one year

remark : we can arrange to shipping machine according to customers requirement

name : fpc soldering machine

Contact Now

Automatic FPC Soldering Machine Use For LCD Repair With Fast Speed

Technical parameters

Model	CWPP-1A
Machine Size	620mm X 690mm X 570mm
Work Area	200mm X 260mm
Air pressing	0.45-0.70Mpa
Machine Weight	90KG

Temperature setting	20-500 C
Bonding time	1-99s
Temperature precision	+-2
bonding force	0.1-0.6Pa
Precision	0.05 Pa

Fixture

1 set

Features :

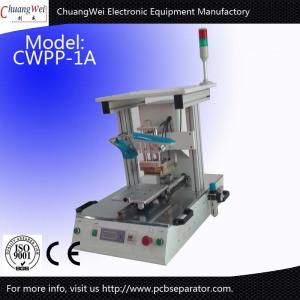

Pulse Heated Soldering Machine with Linear Guideway( CWPP-1A)
1 . Unique pulse heat technology provides fastest soldering head heating.
2 . Programmable soldering temperature, heat-up rate and time duration for a wide range of products.
3 . Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control.
4 . Closed Loop PID temperature control with clearly visible LED display.
5 . Soldering time can be programmable and is triggered by temperature.
6 . Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined.
7 . Programmable pressure switch with LCD display for precise force control.
8 . CCD camera system with magnification lens can be retrofitted for fine-pitch positioning.

Detailed Pictures :

Automatic FPC Soldering Machine Fast Speed Use For LCD Repair
